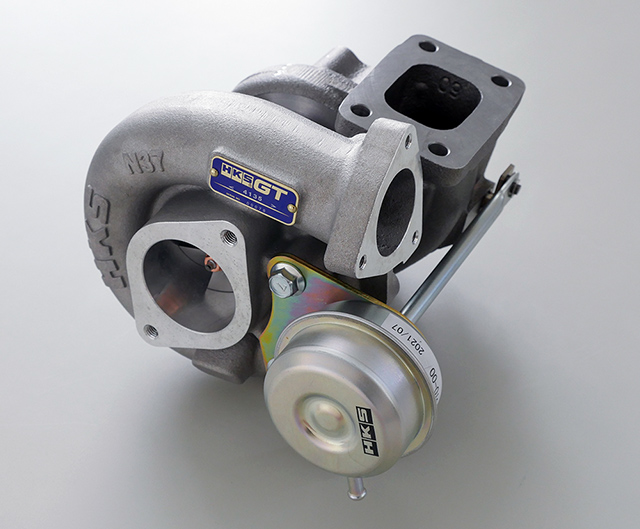

HKS GT SPORTS GT4135 TURBINE KIT
Original price was: ¥210,000.¥189,000Current price is: ¥189,000.
Description
HKS GT SPORTS GT4135 TURBINE KIT
■Features
- This is a turbine that support 300ps (220kW) output in replacement.
- This turbocharger is designed to provide a low to mid RPM range boost pick up and better usability that is not possible with the GT III-RS (350ps target).
- This turbochargers are calibrated with a 75kPa actuator. Higher pressure settings (more than 75kPa) are available use with HKS EVC 7(45003-AK013) and actuator upgrade is not required.
■Turbocharger SPEC
| Compressor | Turbine | A/R | Oil Line | Water line | |||||||
| Inducer | Exducer | Bleads | Inducer | Exducer | Bleads | – | Inlet | Outlet | Inlet | Outlet | |
| Stock | 46.6mm | 60.1mm | 6+6 | 53.8mm | 47.4mm | 11 | – | Tapered screw or M12×1.25 |
Stock (M8×1.25) |
M14×1.5 | M14×1.5 |
| HKS GTIII-RS (11004-AN016) |
55.3mm | 65mm | 6+6 | 56mm | 49.1mm | 12 | 0.6 | M12×1.25 | Special (M6×1.0) |
Special (M14×1.5) |
Special (M14×1.5) |
| HKS GT4135 | 49.3mm | 58mm | 6+6 | 47mm | 41.2mm | 11 | 0.6 | M10×1.25 | Special (M6×1.0) |
Special (M12×1.25) |
Special (M12×1.25) |
■Performance
●Output Characteristics
| No Boost Controller | With EVC 7 | |
| Engine | SR20DET | |
| Boost setting | 75kPa (0.76kg/cm2) |
100kPa (1.01kgf/cm2)
|
| Output | 216kW (294PS) / 6500rpm |
237kW (322ps) / 6500rpm
|
| Toque | 355N・m(36.2kgf・m) / 4500rpm |
400N･m (40.8kgf･m) /4500rpm
|
●Test Vehicle Spec
| Turbo | GT4135 |
| Engine |
SR20VET Stock Piston/ Metal gasket
|
| ECU Management |
F-CON Vpro3.4 / EVC7 / RB air flow sensor
|
| Intake |
HKS Super Power Flow
|
| Fuel |
Upgrade Injector / Nissan Stock Fuel pump for GT-R
|
| Cooling |
Front Mounted Intercooler
|
| Exhaust |
HKS Stainless steel manifold / HKS Metal Catalyser
Upgrade Extension pipe/ HKS Prototype Exhaust system |
■Kit includes
- GT4135 main unit with HKS special actuator
- Water and oil piping
- Gaskets
■Notes
- The oil return hose (part no. 15198-69F00) is required for vehicles from 2000 onwards.
| Vehicle | Model | Engine | Model Year | Type | Turbine Size | Boost Pressure | Part No. | Notes |
| SILVIA | S14 | SR20DET | 93/10 -98/12 | GT SPORTS TURBINE KIT | GT4135 | 75kPa(0.76kg/cm2) | 11004-AN015 |
*The oil return hose (part no. 15198-69F00) is required for vehicles from 2000 onwards.
|
Additional information
| Weight | 9.3 kg |
|---|---|
| Dimensions | 44 × 33 × 30 cm |
