Description

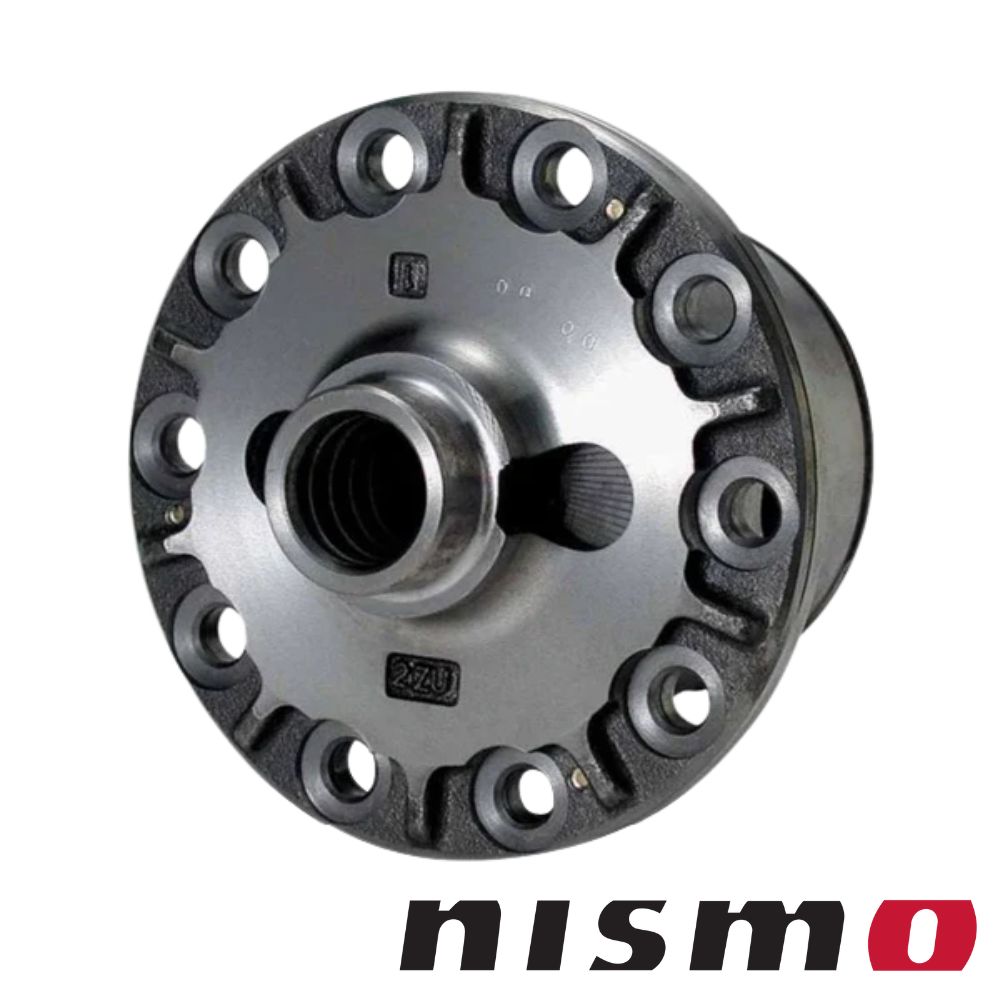

Nismo GT L.S.D. Pro Cam Angle

Features

Clutch-type LSD with adjustable initial torque (6.5-8.5-14.0 kgf・m^*1)
The GT L.S.D. Pro is the ideal solution for drivers who are spending too much time working on their LSD. Otherwise identical to the standard GT L.S.D., the GT L.S.D. Pro adds one unique feature: you will be able to re-set your initial torque with just a turn of your socket wrench and without disassembling your LSD. With a low, middle and high setting (6.5 – 8.5 – 14.0 kgf・m), easy adjustments can be made for changing driving styles, tires, suspension, tuning or track conditions. As initial torque decreases with aging parts, changing the initial torque setting -LOW two times, MIDDLE once- will save you money on overhaul costs.

*1 The design standard for initial torque output values is 6.5 – 8.5 – 14.0 kgf・m. After the LSD is broken in and the plates are working well together, these figures will stabilize at LOW: 5.0 to 5.5; MIDDLE: 7.0 to 7.5; HIGH: 12.5 to 13.0 kgf・m. The GT L.S.D. Pro ships pre-set to the “middle” setting.



Recommended Initial Torque
Circuit Driving: LOW	Street Driving: LOW	Drifting: Middle

GT L.S.D. Pro Cam Angle Chart

Type	1.5WAY	2WAY
GT L.S.D. Pro (drive side/coast side)	55°/1°	55°/45°

How variable initial torque works



【Parts & Build 】
The plate springs (#3 top right) press against the adjustment plate (#2 top right) inside the pinion mate shaft and function together as a set. Three different grooves of varying depth are cut into the “adjustment” plate (2). Initial torque is changed by depressing the spring and moving the plate to the groove corresponding to the desired setting.

〈Details〉
The plate (#2 top right) is held (fitting into “Right side”) by the cap (#1 top right) and reset.



How to change the initial torque

【Re-setting initial torque 】
With the car raised on a jack or rack, the right side axle is unbolted and the side flange removed. A ratchet and socket can then be inserted to turn the pinion mate shaft left for low, center for middle, right for high.



GT L.S.D. Pro compatibility table by car model

Vehicle	Model	Engine	Application	GT L.S.D. Pro		Diff type（axle）	Final ratio
				2WAY Part no.	1.5WAY Part no.
180SX	RS13	CA18DET	All Cars	38420-RSS20-C5	38420-RSS15-C5	R200V	4.363
	RPS13	SR20DET	～’95/10 (5-hole type) M/T car	38420-RSS20-B5	38420-RSS15-B5	R200V	4.083
			95/10~ (6-hole type) M/T car	38420-RSS20-C5	38420-RSS15-C5	R200V	4.083
			A/T Car	38420-RSS20-D5	38420-RSS15-D5	R200V	3.916
		SR20DE	’96/8～	38420-RSS20-C5	38420-RSS15-C5	R200	4.083
Silvia	S13 PS13	CA18DE SR20DE	Vehicles with ABS or viscous	38420-RSS20-C5	38420-RSS15-C5	R200 R200V	4.083 4.363
		CA18DET	All Cars			R200V	4.363
		SR20DET	M/T Car	38420-RSS20-B5	38420-RSS15-B5	R200V	4.083
			A/T Car	38420-RSS20-D5	38420-RSS15-D5	R200V	3.916
	S14 CS14	SR20DE	Vehicles with HICAS or viscous	38420-RSS20-C5	38420-RSS15-C5	R200 R200V	4.083
		SR20DET	A/T Car	38420-RSS20-D5	38420-RSS15-D5	R200V	3.916
			M/T Car	38420-RSS20-C5	38420-RSS15-C5	R200V	4.083
	S15	SR20DE	All vehicles (including Autech version vehicles)			R200 R200V R200H	4.083
		SR20DET	All Cars	38420-RSS20-D5	38420-RSS15-D5	R200V R200H	3.916 3.692
Skyline	HR32	RB20E	ABS Equipped Cars	38420-RSS20-C5	38420-RSS15-C5	R200	4.083
	H（C）R32	RB20DE	All Cars			R200 R200V	4.363
	E（C）R32	RB25DE	M/T Car
	HCR32	RB20DET	2WD Car	38420-RSS20-B5	38420-RSS15-B5	R200V	4.363
	HNR32	RB20DET	4WD Car	38420-RSS20-E	38420-RSS15-E	R200V	4.375
	HR33	RB20E	ABS equipped, non-viscous	38420-RSS20-C5	38420-RSS15-C5	R200	4.083
			Viscous Vehicle			R200V	4.083
	E（C）R33	RB25DE	～’96/1, A/T, non-viscous	38420-RSS20-D5	38420-RSS15-D5	R200	3.538
			96/1~, A/T, non-viscous vehicle	38420-RSS20-C5	38420-RSS15-C5	R200	4.363
			M/T, viscous-free			R200	4.363
			~’94/4 (5-hole type) 2-door, M/T, viscous	38420-RSS20-B5	38420-RSS15-B5	R200V	4.363
			94/4~’96/1 (6-hole type) 2-door, M/T, with viscous	38420-RSS20-C5	38420-RSS15-C5	R200V	4.363
			96/1~, all vehicles with viscous			R200V	4.363
	ENR33	RB25DE	4WD All Cars	38420-RSS20-C5	38420-RSS15-C5	R200V	4.363
	ECR33	RB25DET	Excluding vehicles with Active L.S.D.	38420-RSS20-B5	38420-RSS15-B5	R200V	4.111 4.363
	R34	RB20DE	All Cars	38420-RSS20-C5	38420-RSS15-C5	R200 R200V	4.363
	ER34	RB25DE	2WD, A/T, M-A/T vehicles			R200 R200V	4.083
			2WD、M/T Cars	38420-RSS20-B5	38420-RSS15-B5	R200 R200V R200H	4.363
		RB25DET	2WD Car			R200V R200H	4.111
	ENR34	RB25DE	4WD Car	38420-RSS20-C5	38420-RSS15-C5	R200V	4.363
	CPV35 *1） V35 *1）	VQ35DE	M/T Car CVT Car	38420-RSZ20-4A	38420-RSZ15-4A	R205V Enhancement	3.538
	CKV36 *1）	VQ37VHR	M/T Car（～’10/1）	38420-RSZ20-4B	38420-RSZ15-4B	R205V Enhancement	3.692
			M/T Car（’10/1～）	38420-RSZ20-4C	38420-RSZ15-4C	R205V Enhancement	3.692
Skyline GT-R	BNR32 BCNR33	RB26DETT	Excluding vehicles with Active L.S.D.	38420-RSS20-E	38420-RSS15-E	R200	4.111
Fairlady Z	Z32	VG30DE	Vehicles without ABS	38420-RSS20-B5	38420-RSS15-B5	R200V	4.083
	Z33 *1）	VQ35DE VQ35HR *2）	M/T Car	38420-RSZ20-4A	38420-RSZ15-4A	R205V Enhancement	3.538
	Z34 *1）	VQ37VHR	M/T Car（～’09/10）	38420-RSZ20-4B	38420-RSZ15-4B	R205V Enhancement	3.692
			M/T Car（’09/10～）	38420-RSZ20-4C	38420-RSZ15-4C	R205V Enhancement	3.692
	RZ34	VR30DDTT	M/T Car
Cefiro	（C）A31	RB20E	ABS and HICAS specifications	38420-RSS20-D5	38420-RSS15-D5	R200 R200V	3.916
		RB20DE	All Cars	38420-RSS20-C5	38420-RSS15-C5	R200 R200V	4.083 4.363
		RB20DET	All Cars	38420-RSS20-B5	38420-RSS15-B5	R200V	4.363
Laurel	HC33	RB20E	A/T (up to 1/91), with ABS, no viscous	38420-RSS20-D5	38420-RSS15-D5	R200	3.538 3.900 3.916
			Viscous Vehicle			R200V	3.538 3.916
	H（C）C33	RB20DE	All Cars	38420-RSS20-C5	38420-RSS15-C5	R200 R200V	4.083 4.363
	SC33	RD28	All Cars	38420-RSS20-D5	38420-RSS15-D5	R200 R200V	3.692 3.916
	HCC33	RB20DET	All Cars	38420-RSS20-B5	38420-RSS15-B5	R200V	4.363
	HC34	RB20E	Viscous Vehicle	38420-RSS20-D5	38420-RSS15-D5	R200V	3.916
		RB20DE	All Cars	38420-RSS20-C5	38420-RSS15-C5	R200 R200V	4.083
	G（C）C34 SC34	RB25DE、 RD28	The stingray	38420-RSS20-D5	38420-RSS15-D5	R200	3.538 3.692 3.916
			~’96/12, viscous-type car			R200V	3.538 3.692 3.916
	G（C）C34	RB25DE	96/12~ Viscous type	38420-RSS20-C5	38420-RSS15-C5	R200V	4.363
		RB25DET	All Cars			R200V	4.083
	GNC34	RB25DE	4WD All Cars			R200V	4.363
	G（C）C35	RB25DET	～’98/9			R200V	4.083
			’98/9～	38420-RSS20-B5	38420-RSS15-B5	R200V	4.083
Stagea	WHC34 WGC34	RB20E	～’97/8	38420-RSS20-C5	38420-RSS15-C5	R200 R200V	4.083
		RB20DE	All Cars	38420-RSS20-C5	38420-RSS15-C5	R200 R200V	4.083
		RB25DE	All cars with viscous lubricant & cars without viscous lubricant			R200 R200V	4.083
		RB25DET	98/8~ M/T, viscous transmission	38420-RSS20-B5	38420-RSS15-B5	R200V	4.083
	WGNC34	RB25DE	4WD All Cars	38420-RSS20-C5	38420-RSS15-C5	R200V	4.363
		RB25DET	～’98/8, 4WD, A/T Car			R200 R200V	4.083
			98/8~, 4WD, A/T Car	38420-RSS20-B5	38420-RSS15-B5	R200 R200V	4.083
			98/8~, 4WD, M/T Car	38420-RSS20-E	38420-RSS15-E	R200V	4.111
		RB26DETT	260RS			R200	4.111



*1) Due to the vehicle’s structure, the oil temperature is prone to rising, so if used under high load, we recommend installing a differential oil cooler.

*2) Includes Fairlady Z Version NISMO Type 380RS.

* Autech brand vehicles are not compatible unless specified.

* Installation kit included
