Description

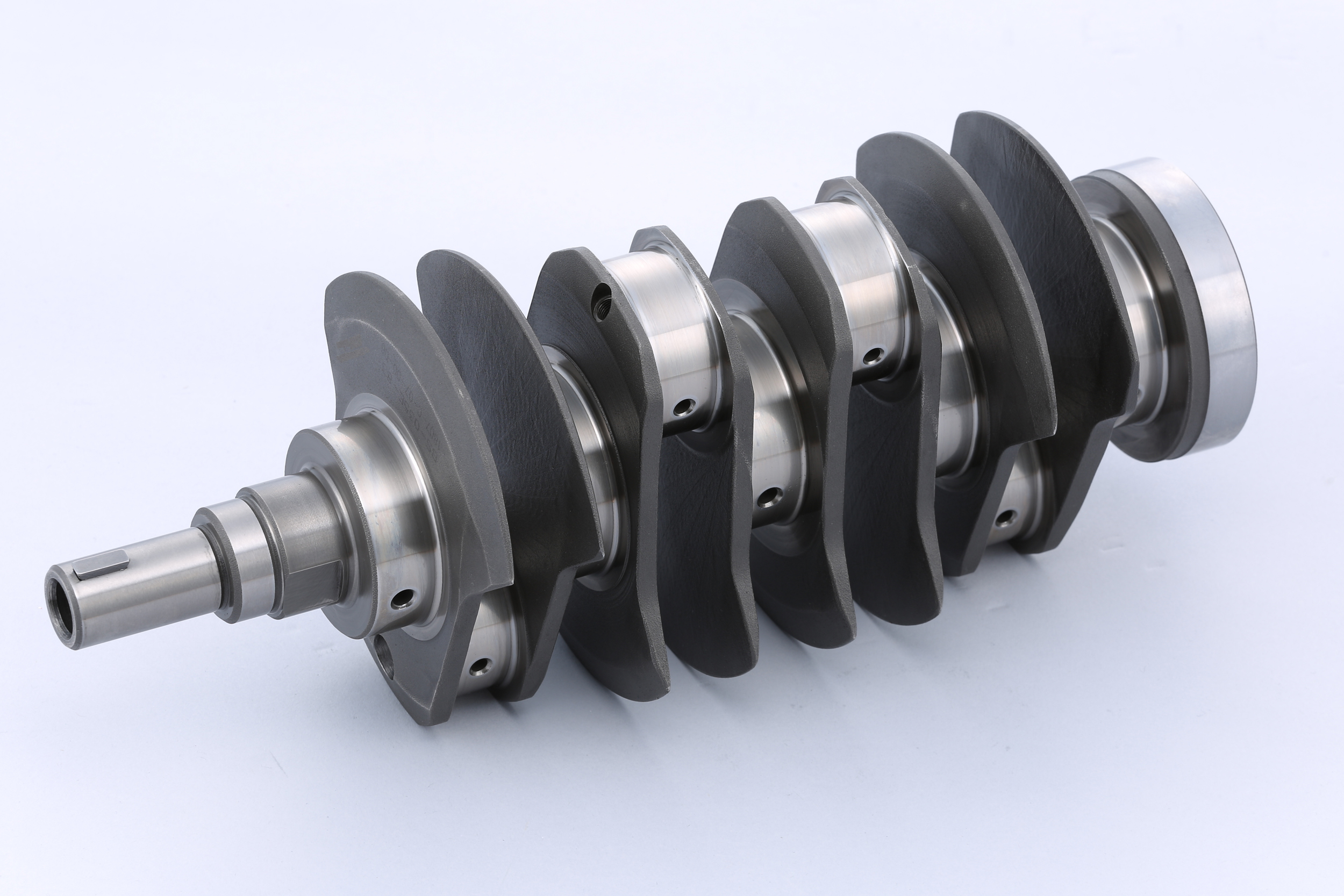

Tomei Billet Full Countered Crank for EJ26

Tomei typically has stock available the same day. (Their factory/ warehouse is 5 minutes around the corner from us.) However, we will let you know if there are backorders or any delays. If you are looking for parts that are not on our website or want to place a bulk stock order, please contact us via the contact form.



PRODUCT INFO

APPLICATION P/N NOTE
EJ26 121045
Special Conrods & Special Pistons are required



FEATURE / SPEC

TOMEI STD
STROKE 83.0mm 79.0mm
WEIGHT 9.2kg 9.4kg
  • Highly Accurately Balanced



Full-counter weighted

By preparing counter weight on every cylinder, making inertia power balance so that bent of the crankshaft is suppressed and vibration and friction is reduced, while the reliability of bearing is raised.



Edge shape designed with hydrodynamics

At high RPM, counterweight rotates at more than 200km/h inside the crankcase through the oil and air.
We designed the edge shape of the counterweight hydro-dynamically sharp so that less resistance will occur even at high rotation.

※1 : If the radius of crank counter weight is 65mm, its circumference is 408mm = 0.4meter. When the engine is running at 8500RPM, crank rotates 141.7 turns per second which is translated in 56.7m/s = 204.1km/h of peripheral speed.
