Description

Tomei Expreme Exhaust Manifold (Ver. 2) for VQ35DE

Tomei typically has stock available the same day. (Their factory/ warehouse is 5 minutes around the corner from us.) However, we will let you know if there are backorders or any delays. If you are looking for parts that are not on our website or want to place a bulk stock order, please contact us via the contact form.



The NA Sports Feel Has Evolved To An All New Level.

The 1st Version design had the targets of “Sharp throttle response”, “Sports engine enjoyment” & “True race exhaust sound”. The new version 2 design has all those target aspects met with the additional target of increased power gains. The designs were made and time painstakingly tested both on the engine bench Dyno in a controller environment and on the car in real life uses in the Z Masters race series in Japan. With these tests we found to have excelled in additional performance gains from the previous 1st Version model.



PRODUCT INFO

APPLICATION P/N NOTES
VQ35DE
VQ35HR		 Z33 MT/AT
CPV35 MT/AT		 415001
When Installing on VQ35HR Equipped Vehicles:
Change the positioning of stud bolts on the engine side & Change the catalytic compatible to the VQ35DE layout.



FEATURE / SPEC

MATERIAL
 PIPE SUS304
FLANGE STEEL
HEAT SHEILD PLATE SUS304
PIPE DIAMETER
 MAIN φ42.7
EXIT φ60.5
VOLUME 1.5mm
WEIGHT
6.3kg(STD 6.8kg)

■ STOCK COMPARISION

With the best layout design there was a weight savings gained from our new design.

■ THERMAL PROTECTION

With the new performance design layout it is hard to use the thermal bandage to control the heat in the engine bay.
So for added performance gains we have also added a Heat shield Sheet and thermal protector and flexible thermal tube cover. These accessories are all included in the kit and help reduce performance robbing heat.

■ EXHAUST FLOW OPTIMZED

For the optimum performance layout the pipe bends are designed to maximize exhaust flow efficiency. The merging section joint angles have all been flow tested and with the smooth pipe layout, performance is maximized with this bolt on kit.

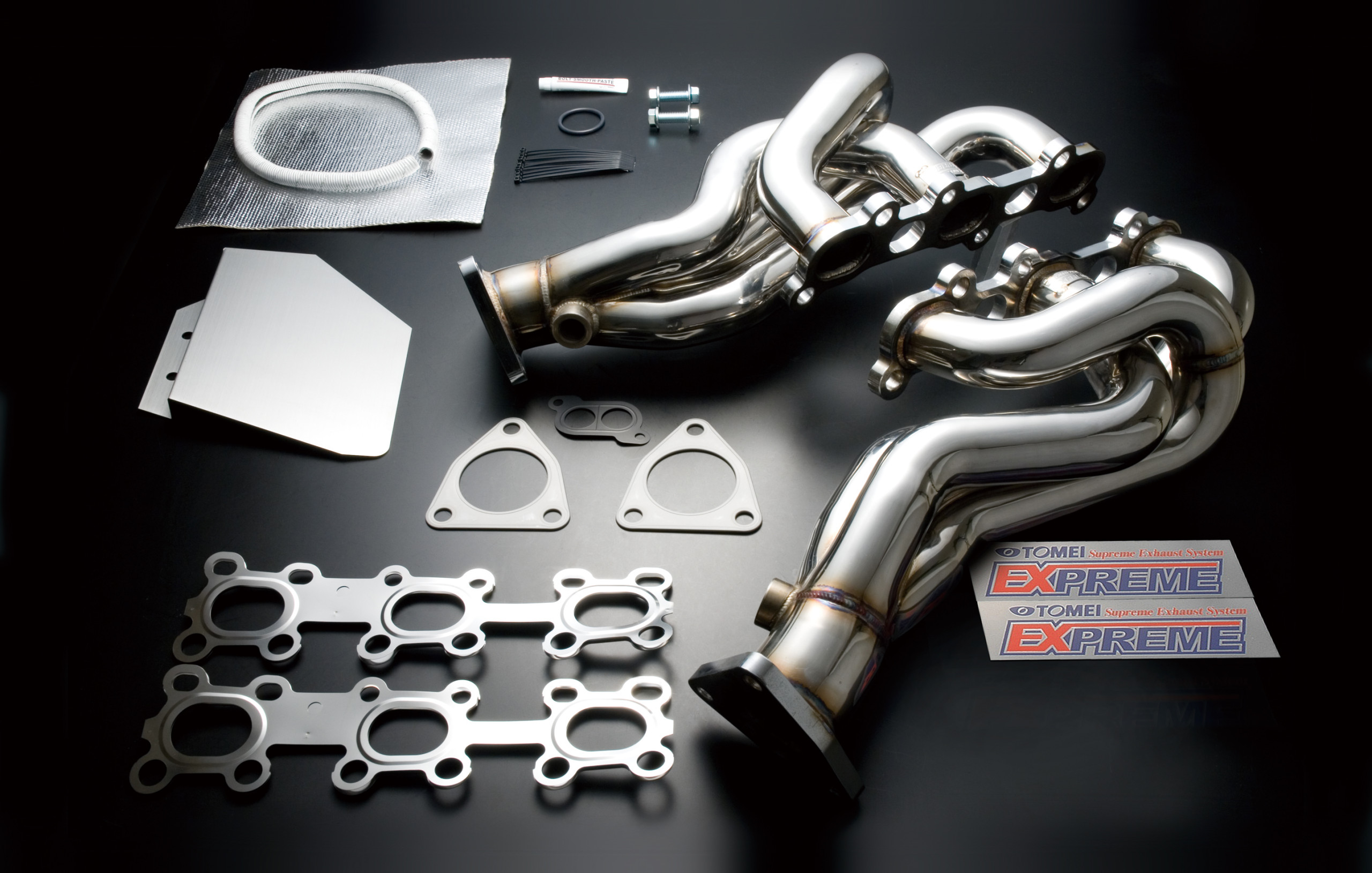

KIT CONTENTS

  • Exhaust Manifold
  • Gasket ※Between Head & Manifold
  • Gasket ※Between Head & Catalytic Converter
  • Heater Pipe Gasket
  • O-ring
  • Flange Bolt
  • Flange Nut
  • Heat Sheild
  • Heat Sheild Sheet
  • Heat Sheild Tube
  • Tie Wrap



DATA



COMPATIBLE WITH VQ35HR

[1] Change the positioning of stud bolts on engine side.



[2] Change the catalytic converter to the type that is compatible to the VQ35DE layout.
