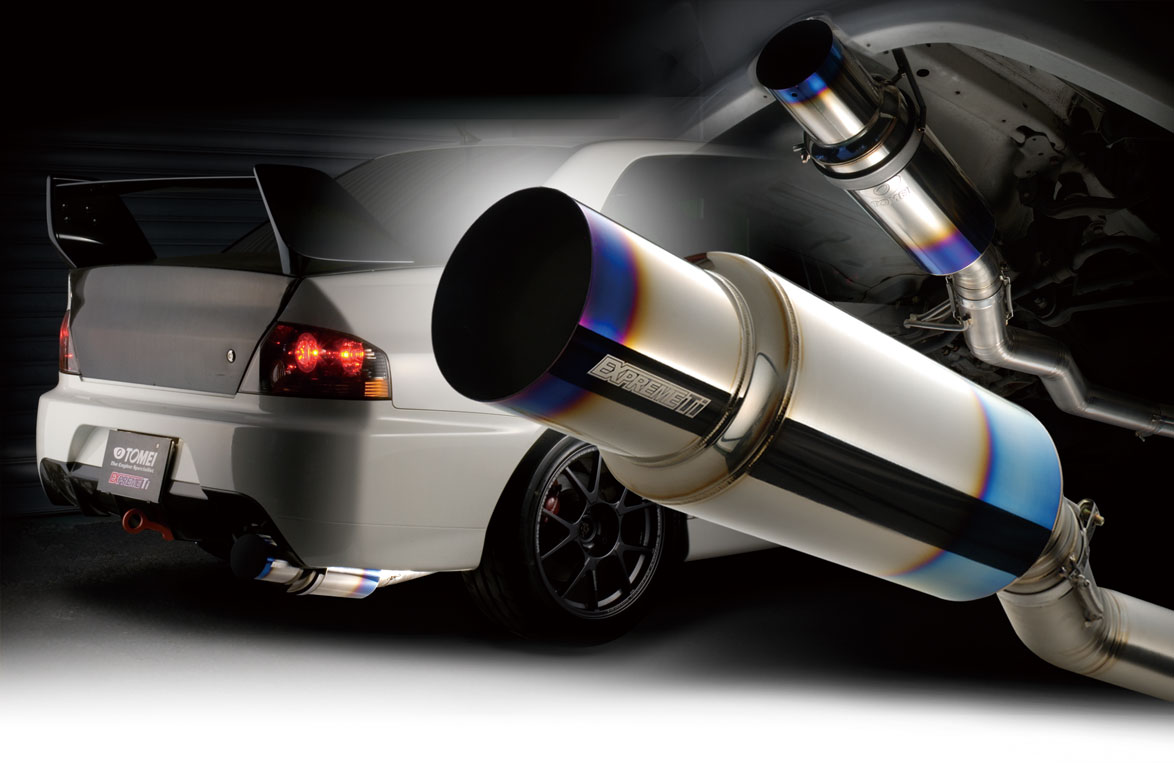

Tomei Expreme Ti Titanium Muffler for EVO7-9 4G63

Tomei typically has stock available the same day. (Their factory/ warehouse is 5 minutes around the corner from us.) However, we will let you know if there are backorders or any delays. If you are looking for parts that are not on our website or want to place a bulk stock order, please contact us via the contact form.



High quality production, for true competition use without compromise. Only the best Titanium grade materials are used. From the special racing layout design, made as straight as possible, to the high flow silencer. We have poured our knowledge into it all. When you see our EXPREME Ti system, you can then understand that ours is unrivaled.



PRODUCT INFO

APPLICATION P/N NOTES
Evo.7/8/9 440003
※ for JAPANESE BUMPER
※FOR OFF ROAD USE ONLY.



FEATURE / SPEC

  • MAIN PIPE A
  • MAIN PIPE B
  • SILENCER ASSY
  • GASKET
  • WASHER M12
  • NUT M12
  • A/F BOSS PLUG
  • COPPER WASHER
  • CLAMP BAND
  • SPRING
  • SILENCER BAND
  • BAND RUBBER
  • BOLT M8
  • NUT M8 L=25mm
  • SOUND REDUCER
  • BUTTON BOLT
  • ALLEN KEY
  • MUFFLER HANGERS
  • SPACER
  • SPRING WASHER
  • NUT M8 L=60mm



SPEC

TOMEI STD
MATERIAL TITANIUM IRON
MAIN PIPE DIAMETER Φ80.0 Φ60.5
MAIN PIPE THICKNESS 1mm 1.5ｍｍ
SILENCER DIAMETER Φ152
100×440mm(Oval)
SILENCER THICKNESS 1mm –
EXIT DIAMETER Φ115 Φ100
EXIT THICKNESS 1mm –
FLANGE THICKNESS 6.0mm 12.0mm
WEIGHT 4.85kg 16.00kg
11.15kg DROP!



DATA



RACING LAYOUT

For the best exhaust efficiency results minimal bends and curves was the design focus points on this product which aided with the supreme results.



3 SECTION PIPE ASSEMBLY



No flanges were fitted for increased weight savings and for a better finish with the race look secure springs and clamp methods.



COMPATIBLE WITH ALL CT9A EVO MODELS ※JAPANESE BUMPER

STYLE

Evo8



Evo9
