Description

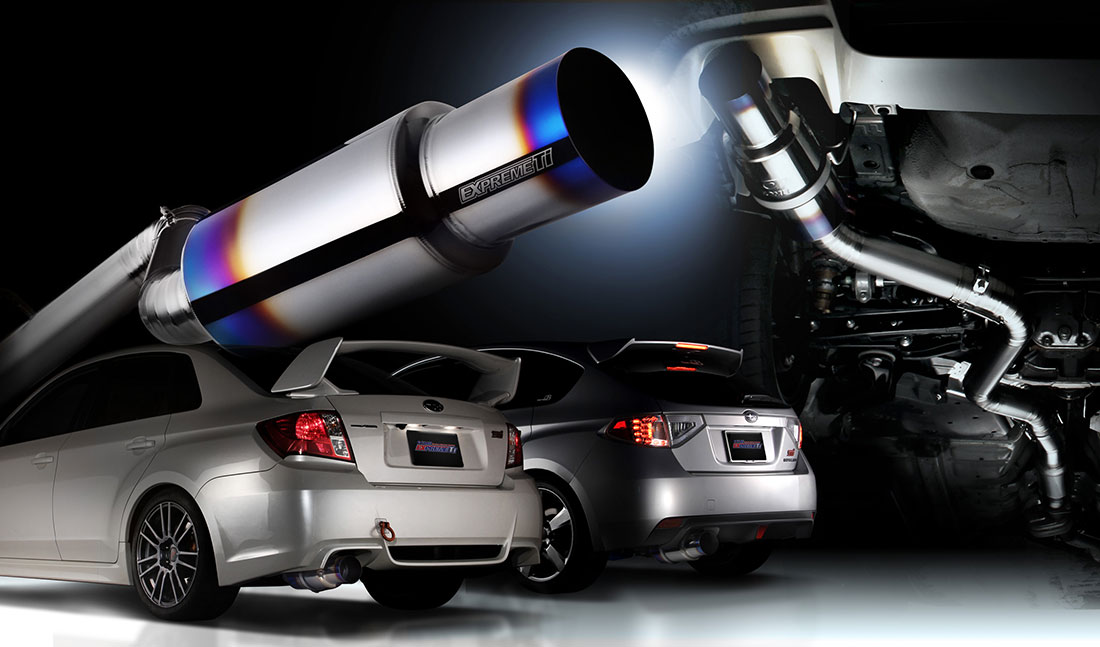

Tomei Expreme Ti Titanium Muffler for GR#/GV#

Tomei typically has stock available the same day. (Their factory/ warehouse is 5 minutes around the corner from us.) However, we will let you know if there are backorders or any delays. If you are looking for parts that are not on our website or want to place a bulk stock order, please contact us via the contact form.



MORE POWER, LESS WEIGHT, DRAMATICALLY CHANGE YOUR WRX/STI.

High quality production, for true competition use without compromise. Only the best Titanium grade materials are used. From the special racing layout design, made as straight as possible, to the high flow silencer. We have poured our knowledge into it all. When you see our EXPREME Ti system, you can then understand that ours is unrivalled.



PRODUCT INFO

APPLICATION P/N JPY NOTES
GR#
(5Dr HB)
 GRB A-D/GRF B-D ※for JDM 440015
￥188,000
※FOR OFF ROAD USE ONLY.
GRF WRX STI 2008+/WRX 2011+ ※for USDM 440017
GV#
(4Dr Sedan)
 GVF WRX STI 2011+/WRX 2008+ ※for USDM 440018
GVB/GVF C-D ※for JDM 441013 198,000



FEATURE / SPEC

KIT CONTENTS

for JDM for USDM
  • MAIN PIPE A
  • MAIN PIPE B
  • SILENCER ASSY
  • BOLT M8 L=25mm
  • BOLT M8 L=55mm
  • NUT M8
  • CLAMP BAND
  • SPRING
  • SILENCER BAND
  • BAND RUBBER
  • SOUND REDUCER
  • ALLEN KEY
  • MUFFLER HANGER(for 441013 Only)
  • MAIN PIPE A
  • MAIN PIPE B
  • SILENCER ASSY
  • GASKET FOR TOMEI DOWNPIPE
  • GASKET FOR STD DOWNPIPE
  • BOLT M10
  • NUT M10
  • BOLT M8 L=25mm
  • BOLT M8 L=35mm
  • NUT M8
  • CLAMP BAND
  • SPRING
  • SILENCER BAND
  • BAND RUBBER
  • SOUND REDUCER
  • ALLEN KEY



SPEC

TOMEI(GV) STD (GV)
MATERIAL TITANIUM IRON
MAIN PIPE DIAMETER Φ80.0
(GV)Φ60.5-42.7×2
MAIN PIPE THICKNESS 1mm 1.5ｍｍ
SILENCER DIAMETER Φ152 –
SILENCER THICKNESS 1mm –
EXIT DIAMETER Φ115 Φ80×2
EXIT THICKNESS 1mm
8mm 2 HEAVY PIPES
FLANGE THICKNESS JDM:2.0mm/USDM:8.0mm 2.0mm
WEIGHT JDM:7.0kg/USDM:7.2kg 23.0kg
JDM : 16kg USDM : 15.8kg DROP!



DATA

WRX ‘08-’14/STI ’11-’14 (4Dr) EJ25 TESTED @ 4800rpm
WRX‘11-’14/STI ’08-’14 (5Dr) EJ25 TESTED @ 4650rpm
EXHAUST NOISE TEST Without Inner Silencer:105db
With Inner Silencer:96db
Without Inner Silencer:99db
With Inner Silencer:95db



RACING LAYOUT

When aiming for true performance efficiency, we had chosen to design the exhaust with the least amount of bends as possible. Just like the true purpose built race cars, in a racing layout design, yet to still comply with the stock body design so it can be fitted to any street used vehicles.

A : MAIN SILENCER/ TAIL END

Compared with the stock design, our design is single piping all the way for max weight reduction. We have also focused on the design of the muffler to produce the best exhaust sound without compromising performance.

B : MAIN PIPE

The pipe diameter was chosen for optimum exhaust flow efficiency. For performance use in mind and weigh reduction. Thus the slide joints was made instead of using the conventional flange and gasket design.

C : SUB SILENCER

This sub silencer was designed with a simple structure and minimal size to reduce unwanted noise. Without hindering exhaust gas flow.

SECTION PIPE ASSEMBLY

The conventional style flange is not used to help reduce weight even further. The use of the springs and clamps eliminates the need for gaskets as well.



STYLE

GV#

GR#
