Tomei Inner Shim Kit 2JZ

Tomei typically has stock available the same day. (Their factory/ warehouse is 5 minutes around the corner from us.) However, we will let you know if there are backorders or any delays. If you are looking for parts that are not on our website or want to place a bulk stock order, please contact us via the contact form.



TOMEI Inner Shim Kit has been developed for higher lift camshafts.
Inner Shim System does not require large and heavy shims unlike stock Outer Shim system.
This significant weight reduction in each valve and the optimized valve springs ensure even more proper valve timing along with hight lift camshafts.



PRODUCT INFO

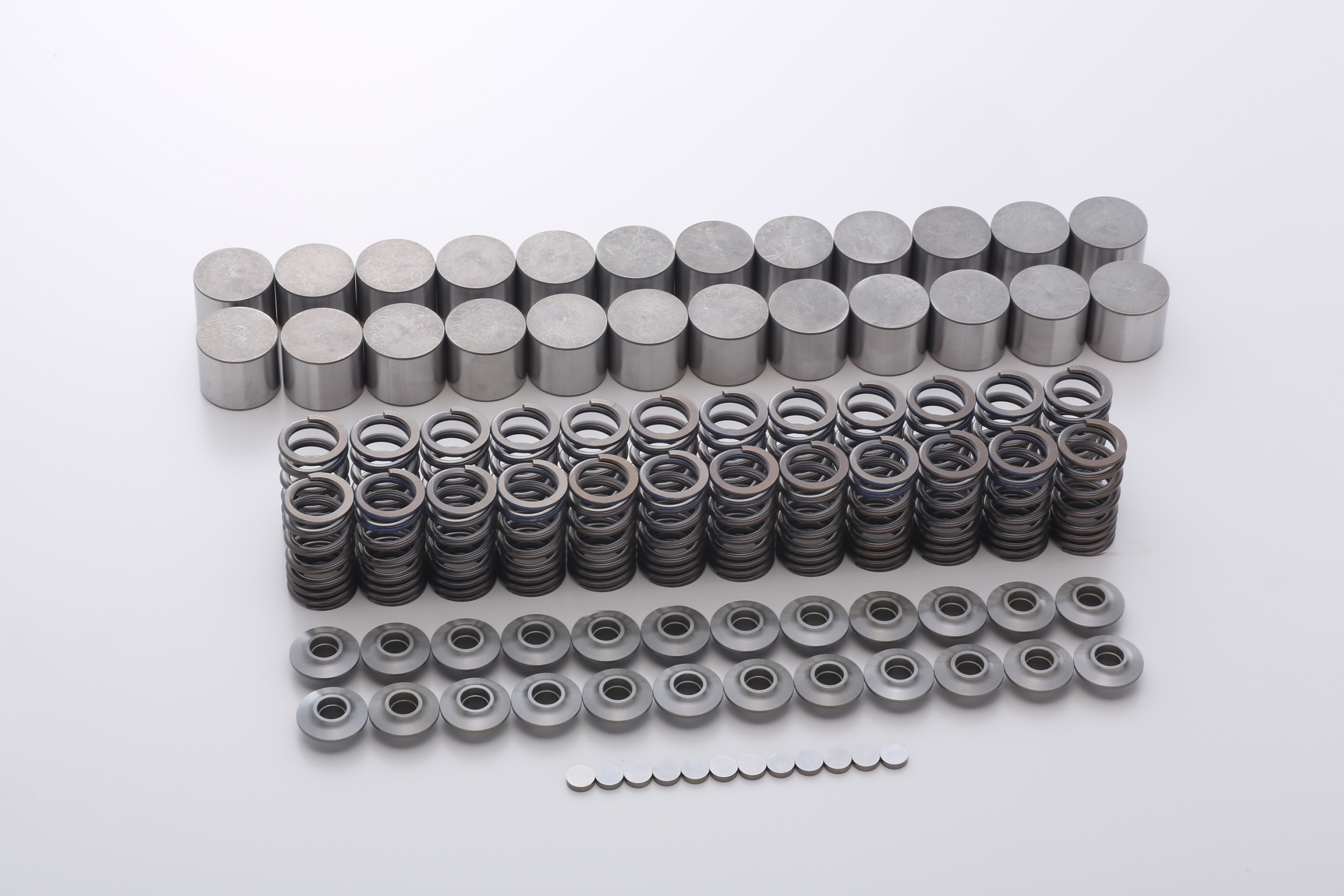

APPLICATION P/N CONTENTS
2JZ-GTE 163501
・Valve Lifter×24
・Valve Spring×24
・Titanium Valve Spring Retainer×24
・Test Shim×12

※Requires to install inner shim type camshaft.
※Please install with OEM or Tomei appropriate size of SR20 shim.



FEATURE / SPEC

TOMEI STD
Valve Spring Oval Core Wire / Variable Pitched
Egg-shaped Core Wire / Variable Pitched
Retainer Titanium W/special surface finish Steel Alloy
Valve Lifter Forged billet steel(outer dia.31mm,Inner shim System)
Chromium-molybdenum steel(outer dia.31mm,outer shim System)
Shim Outer Diameter:10mm(T=2.8mm)
Outer Diameter:28mm(T=2.8mm)
Total weight 83g 93.5g
