Description

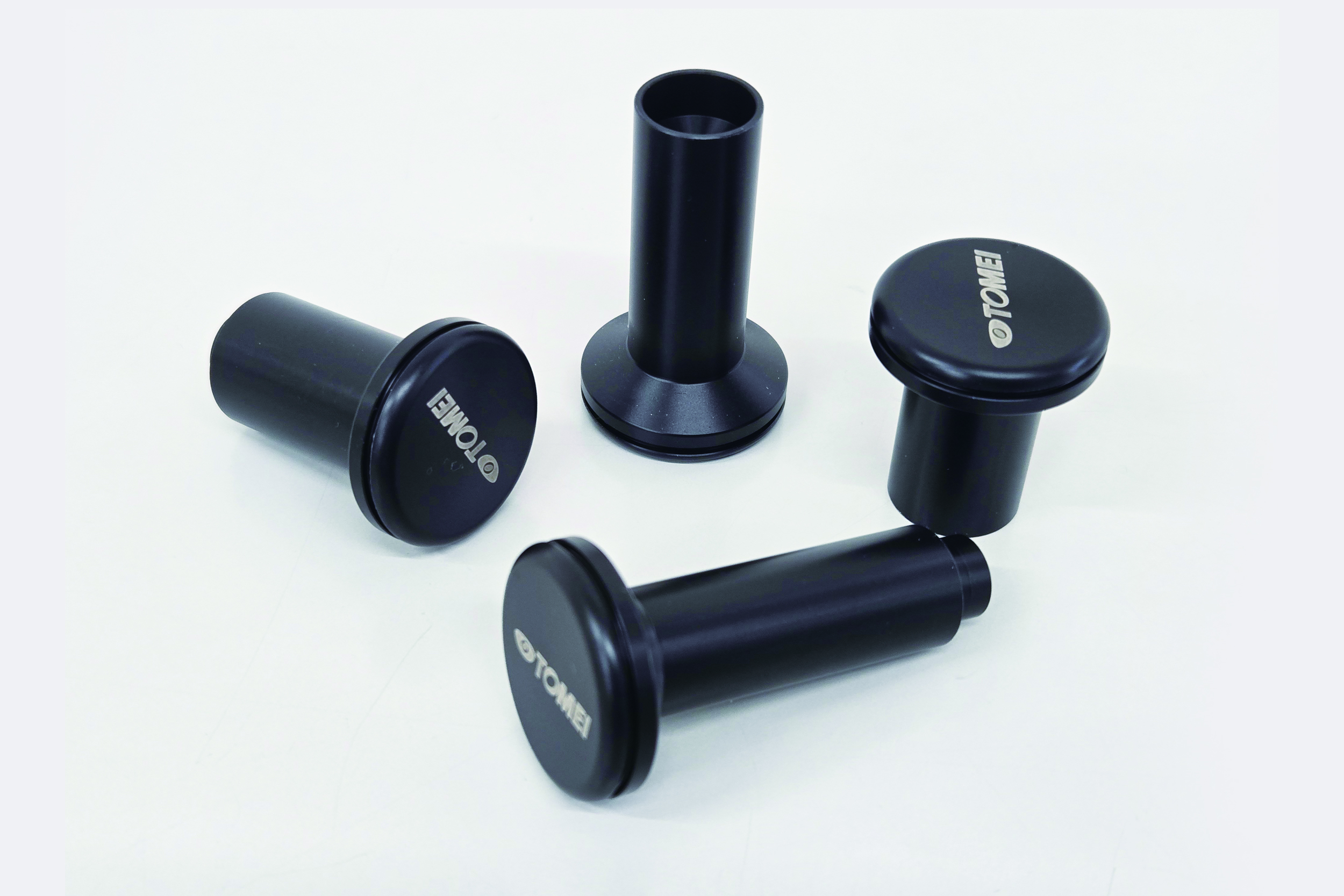

Tomei Spin Turn Knob



PRODUCT INFO

PRODUCT TYPE P/N NOTE
SPIN TURN KNOB
 TYPE-1 763028 This product is compatible only with NISSAN vehicles that meet the following specification.
・Release button with 13.5mm outer diameter.
TYPE-2 763026 Compatible only with TOYOTA/MITSUBISHI/MAZDA vehicles that meet the following specifications.
・Mounting screw size：M5×P0.8
・Grip inner diameter：14mm
TYPE-3 763027
Compatible only with TOYOTA vehicles that meet the following specifications.
・Mounting screw size：M5×P0.8
・Grip inner diameter：13mm
TYPE-4 763025
Compatible only with SUBARU/TOYOTA vehicles such as 86・GR86・BRZ that meet the following specifications
・Mounting screw size：M5×P0.8
・Grip inner diameter：16mm

・Don’t install this product on vehicles that don’t meet the specified requirements.
・If this product is used with the spring disengaged, it is intended exclusively for use in motorsports. Please use it only on racetracks, public roads, or in closed areas.



Application

TYPE Representative Vehicles
TYPE-1 NISSAN SILVIA/180sx (R)PS13/S14/S15
TYPE-2
TOYOTA
 STARLET EP71/82/85/91
COROLLA LEVIN/SPRINTER TRUENO
AE86/92/101/111
MR-2 AW11
SUPRA JZA80
SOARER JZZ30
MITSUBISHI LANCER Evo
CT9A(Evo.7.8.9)/CZ4A(Evo.10)
MAZDA
 ROADSTER NA6/8CE
RX-7 FC3S/FD3S
TYPE-3
TOYOTA
 SUPRA JZA70
MR-2 SW20
MARK II/CHASER JZX90/100/110
TYPE-4
 TOYOTA 86/GR86 ZN6/ZN8
SUBARU
 BRZ ZC6/ZD8
IMPREZA
GDB C-D/GRB/GRF/GVB/GVF

※Please be sure to check the screw size and pitch of the vehicle you will be using.



【TYPE-1】

【TYPE-2】

【TYPE-3】

【TYPE-4】
